Foundation Plan(s)
The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.

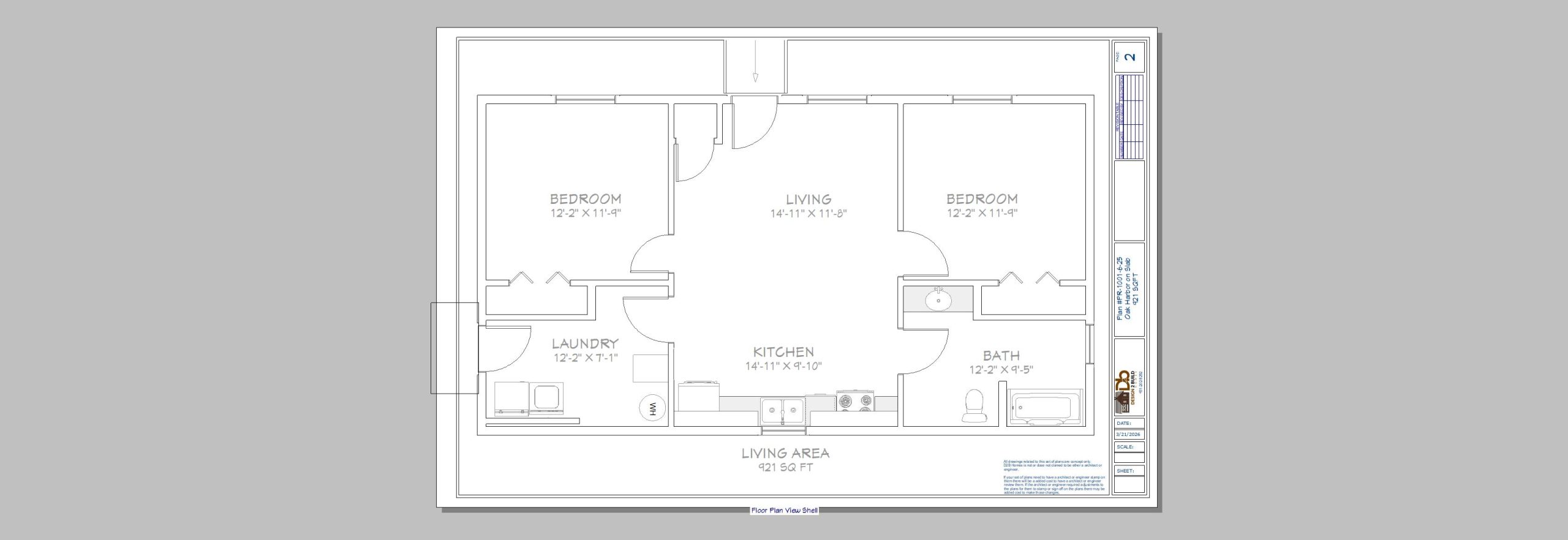

Floor Plan(s)
Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown.
Exterior Elevations
In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Overhead Roof Plan(s)
Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated, and we also show gutters, downspouts, and any roof venting required for your home.
Cross Section(s)
A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Construction Notes and Detail(s)
Your home comes detailed to meet the requirements of the latest adopted version of the International Residential Code. Compliance with further standards may need to be incorporated depending on your building department requirements.
Building Section(s)
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Stair calculations and roof and foundation members are also depicted.
Framing Detail(s)
Exterior and interior wall framing, windows/doors, beams, posts, and bearing points are detailed. Cabinet elevations may also be included where applicable.
